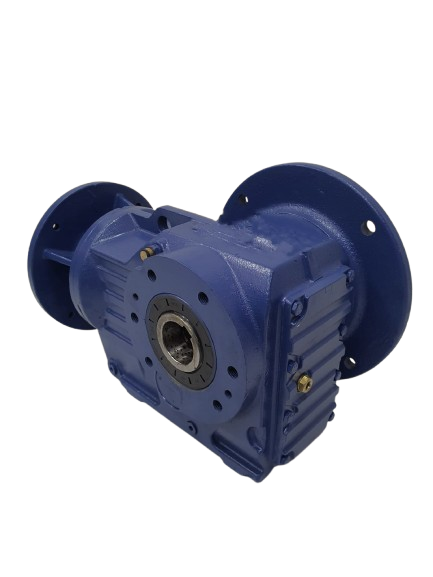

K-series Gearbox
Product Range :-
- Power : 0.18kW~200kW
- Max. Torque : Up to 50000N.m
- Gear Arrangement : Hardened Helical-bevel Gears
- Shafts Position:- Right Angle
- Model:- K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
- Ratio:- 5.36~178.37
Installation:
-
Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted
Application:-
-
AeratorsCoal WasheryConveyorsCranesCross-flow grit SeparatorExtrusionFeedersGantry CraneGating SystemsHoist ApplicationMechanical ScreensMixersMouldingOverhead CranePalletizingPaper Mill DriveRotating Biological ContractorSand MullersScrapersStacker ReclaimerVortex Grit Trap
| Models |
Output Shaft Dia. |
Input Shaft Dia. |
Power(kW) |
Ratio |
Max. Torque(Nm) |
| Solid Shaft |
Hollow Shaft |
| K38 |
25mm |
30mm |
16mm |
0.18~3.0 |
5.36~106.38 |
200 |
| K48 |
30mm |
35mm |
19mm |
0.18~3.0 |
5.81~131.87 |
400 |
| K58 |
35mm |
40mm |
19mm |
0.18~5.5 |
6.57~145.15 |
600 |
| K68 |
40mm |
40mm |
19mm |
0.18~5.5 |
7.14~144.79 |
820 |
| K78 |
50mm |
50mm |
24mm |
0.37~11 |
7.22~192.18 |
1550 |
| K88 |
60mm |
60mm |
28mm |
0.75~22 |
7.19~197.27 |
2700 |
| K98 |
70mm |
70mm |
38mm |
1.3~30 |
8.95~175.47 |
4300 |
| K108 |
90mm |
90mm |
42mm |
3~45 |
8.74~141.93 |
8000 |
| K128 |
110mm |
100mm |
55mm |
7.5~90 |
8.68~146.07 |
13000 |
| K158 |
120mm |
120mm |
70mm |
11~160 |
12.66~150.03 |
18000 |
| K168 |
160mm |
140mm |
70mm |
11~200 |
17.35~164.44 |
32000 |
| K188 |
190mm |
160mm |
70mm |
18.5~200 |
17.97~178.37 |
50000 |
